Revolutionize Your Skincare with the 3D Skin Analysis Machine

3D Skin Analyzer Machine

skin analyzer provides facial skin test and morphological analysis to generate customized treatment plan; facial high-definition image data by four spectra can be obtained, Resolution is 2000W Pixel for whole face image; combined with professional skin analysis algorithm, highly referential test reports can be generated; within 8S, 180° high-definition scan on whole face can produce 3D facial modeling; facial Feature Points data can be measured precisely; there is digit-driven Aesthetics Design.

Description of 3D Skin Analyzer Machine

3D Skin Analyzer provides facial skin test and morphological analysis to generate customized treatment plan; facial high-definition image data by four spectra can be obtained, Resolution is 2000W Pixel for whole face image; combined with professional skin analysis algorithm, highly referential test reports can be generated; within 8S, 180° high-definition scan on whole face can produce 3D facial modeling; facial Feature Points data can be measured precisely; there is digit-driven Aesthetics Design.

Advantage of 3D Skin Analyzer Machine

First Choice Image Analysis Device for Skin Beauty Clinics

3D skin analysis 8S Quick Shooting11 Intelligent Image Analysis ModesArtificial intelligenceHigh Standard Color CalibrationTreatment simulation Measurements & Compact SolutionEasy to share comparative tools

System Configuration

Model: Face3D 20
CPU: Intel i7
Built-In Memory: 16G
Operating Monitor: Screen (With HDMI Interface)
Disk Space: 512G
3D Camera: 2 Groups (Binocular Grating Structured Light)
3D Modeling Precision: 0.1 mm
Model Facets Number: 150000-400000
Whole Face Pixel: 21,000,000
Photographing Light Source: Standard LED Light Source, Cross Polarized Light, Parallel Polarized Light, UV Ultraviolet
Output Interface: USB, HDMI
Power Supply: DC19V/6.3A
Max Power: 120W
Working Temperature: 5℃-25℃
Internet Requirement: WiFi

Highly-Standard Color Calibration

Self-Research Skin Color Calibration ISP System based on ColorChecker (24 Colors) ensures the authenticity and consistency between skin texture and its image.
Industrial-Level Standard camera and best flashlight included angle are applied, combined with Smart Modeling Technology, facial 3D modeling can be created precisely.
Example of Local Image Resolution

Highly-Standard Color Calibration

Function Analysis

In Vascular Image, red area value can be extracted and highlighted by image enhancement technology.
In Red Heatmap, the hemoglobin in skin capillary can be shown by areas of dark red.
In UV light, there are Porphyrin Imaging, Propionibacterium Acnes, Pityrosporum.
Skin Texture, Skin Flatness, Wrinkles, Fine Lines, Large Pores can be observed.
UV Pigment Spots Imaging can be used for UV Eumelanin Pigment Spots Imaging

Red Inflammation Image

Image Example:

The reflected light on skin surface can be filtered by Cross Polarized Light. Inflammation, areas of Red Spot, Rosacea can be observed.

Skin lesion is shown by Red Spot, Telangiectasia and Inflammation Follicular Pimple, Furuncle, etc.

Brown Area Pigment Spot Image

Image Example：

Facial light and dark brown spot area is collected from Cross Polarized Light image by image processing technology, compared with healthy skin color, pigment spots can be shown obviously on face image.

UV Light Image

Image Example:

Oil and grease, bacteria,deep-layer pigment spot, Pigment Dark Circles under the Eyes can be observed by UV light’s fluorescent light response on different materials.

Symptom Analysis

8 Dimensions

Sensitive Skin, Acne, Pigment Spots, Blackheads, Pores, Porphyria, Aging

Skin Aging Analysis

Multiple Dimensions

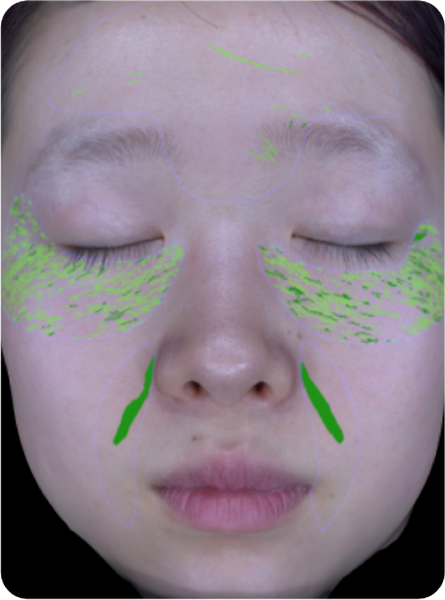

Observe wrinkles on forehead, between eyebrows, surrounding eyes, nasolabial folds, tear trough, surrounding mouth, superior palpebral sulcus, cheek wrinkles, temporal depression, cheek depression, slack cheek, slack chin, etc.

Software Function

Multi Types of Comparison

Multi Types of Comparison Mode Precise and Visual Display of Skin Condition Before and After Skin Care

3D Comparison

3D Display of Skin Flatness for Providing More Suitable Skin Care Treatments

Volume Measurement

Facial contour defects can be displayed clearly by high-precision 3D face scan. Multi photographing on millimeter-level to calculate face volume change value.
